CROC LIFT

The CROC LIFT product range includes submersible motorised trailers and travel lifts, meeting the needs of operators not disposing of launching piers or in need to make the most of the ramps present in the working area.

sample
sample
sample
sample
sample
sample

With the CROC LIFT series, BOAT LIFT is a first-mover in the amphibious machines market, offering tailor-made solutions designed directly with the customer according to slopes, terrain characteristics, type of boats and spaces available within the boatyard.

AMPHIBIOUS TRAILERS

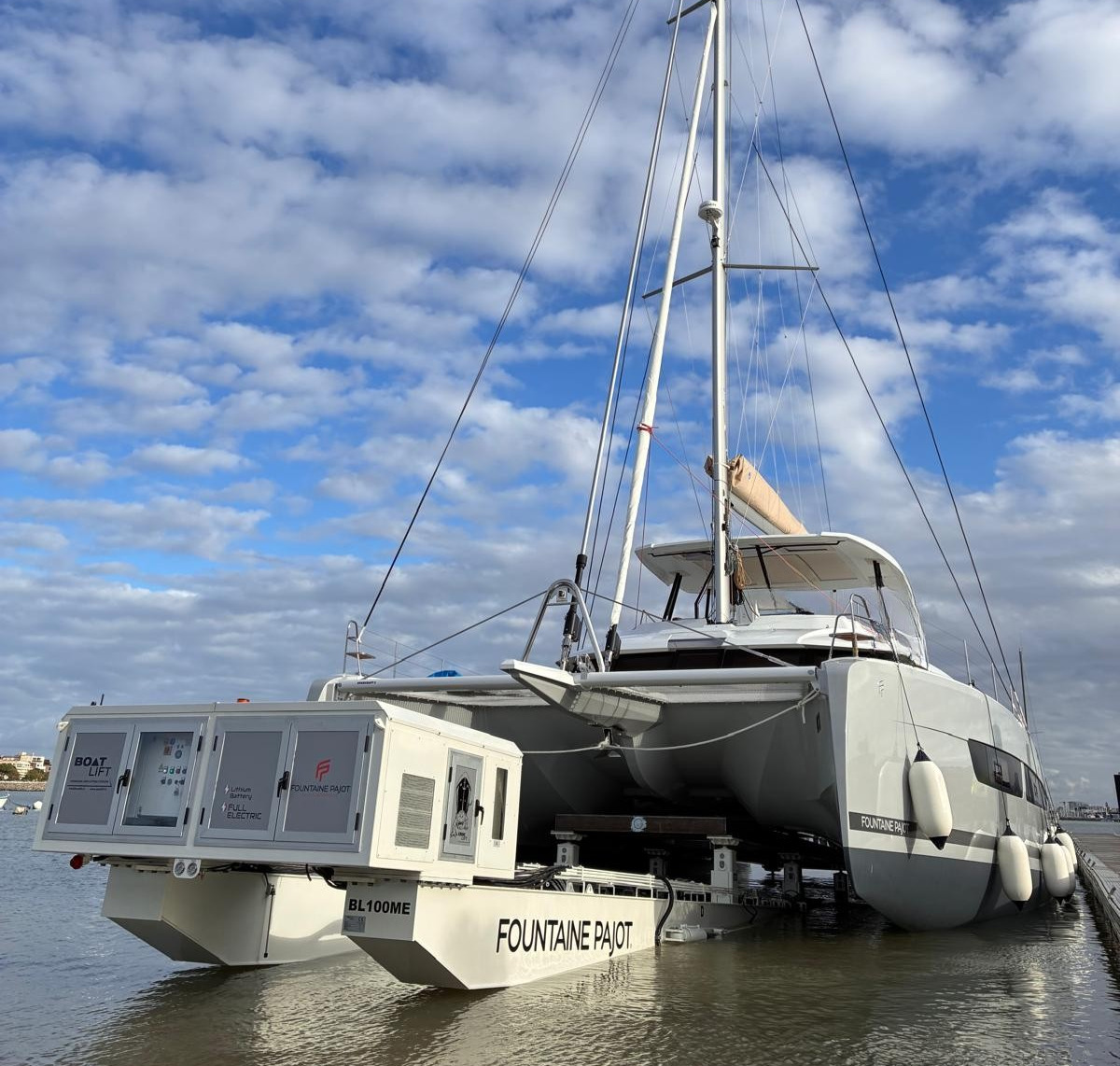

The specific design of CROC LIFT amphibious trailers allows easy hauling and launching operations, both for mono and multi-hulls.
Thanks to the hydraulic lifting points and to the patented lateral supports, it is possible to take boats out directly from water with no risk for the hulls.
On the yard, the trailer ensures maneuverability and optimisation of stocking spaces.

sample
sample
sample
sample
sample
sample
sample

MAIN FEATURES

  • Maximum gradient >10%

  • Variable track by telescopic hydraulic expansions system

  • Anti-corrosion painting compliant to C5m cycle

  • Radio remote control with proportional control system

  • Lifting by double-effect cylinders on each wheel-group

  • Self-levelling system for maximum load stability

  • Hydraulic supports on each spar

  • Electrical supply by 12 VDC battery

  • Double proportional motion speed unloaded / loaded

  • Pneumatic tyres

  • Front and rear steering wheels

  • Filtering of system hydraulic oil

AMPHIBIOUS TRAVEL LIFTS

Amphibious travel lifts are the ideal solution for boats hauling and launching in presence of medium to great depth ramps.

MAIN FEATURES

  • Maximum gradient >10%

  • Tailored dimensions according to customer’s needs

  • Soundproofed diesel engine compliant to current regulations

  • Anti-corrosion painting compliant to C5m cycle

  • Independent and electronically synchronised winches

  • Load balancing 60% / 40%

  • Double proportional lifting speed unloaded / loaded

  • Lifting belts with safety factor 7:1

  • Double proportional motion speed unloaded / loaded

  • Industrial tyres, air-inflated or equipped with specific filling

  • Pipes and fittings in galvanised painted steel

  • Filtering of system hydraulic oil

  • Electrical supply by 12/24 VCC battery

  • Remote assistance in real time by M2M system
